Specifications
| Type | SK597-AT4 |
| Year of construction | 2018 |
| Jib length | 48 m |
| Maximum load | 7.000 kg |
| Tip load | 1.700 kg |
| Height under jib | 29,8 |
| Maximum lifting height | 58,1 |
| Set-up time | 8 min |
| Weight | 48000 kg |
| Crane Engine | John Deere Stage IIIA |
| Truck Engine | DAF Euro 6 |
| Hours crane | 10881 |
| Hours truck | 2426 |
| Km truck | 33707 |

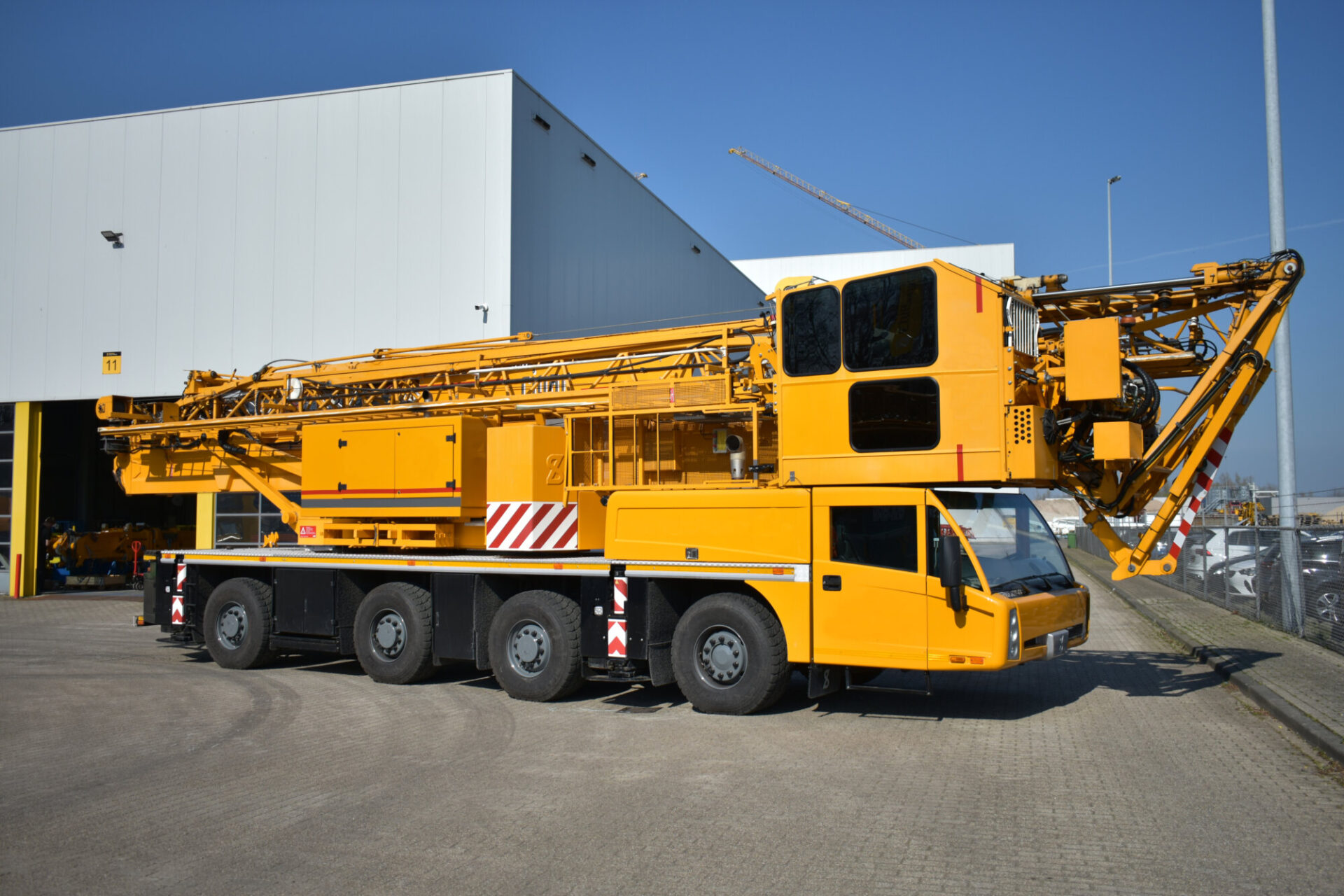

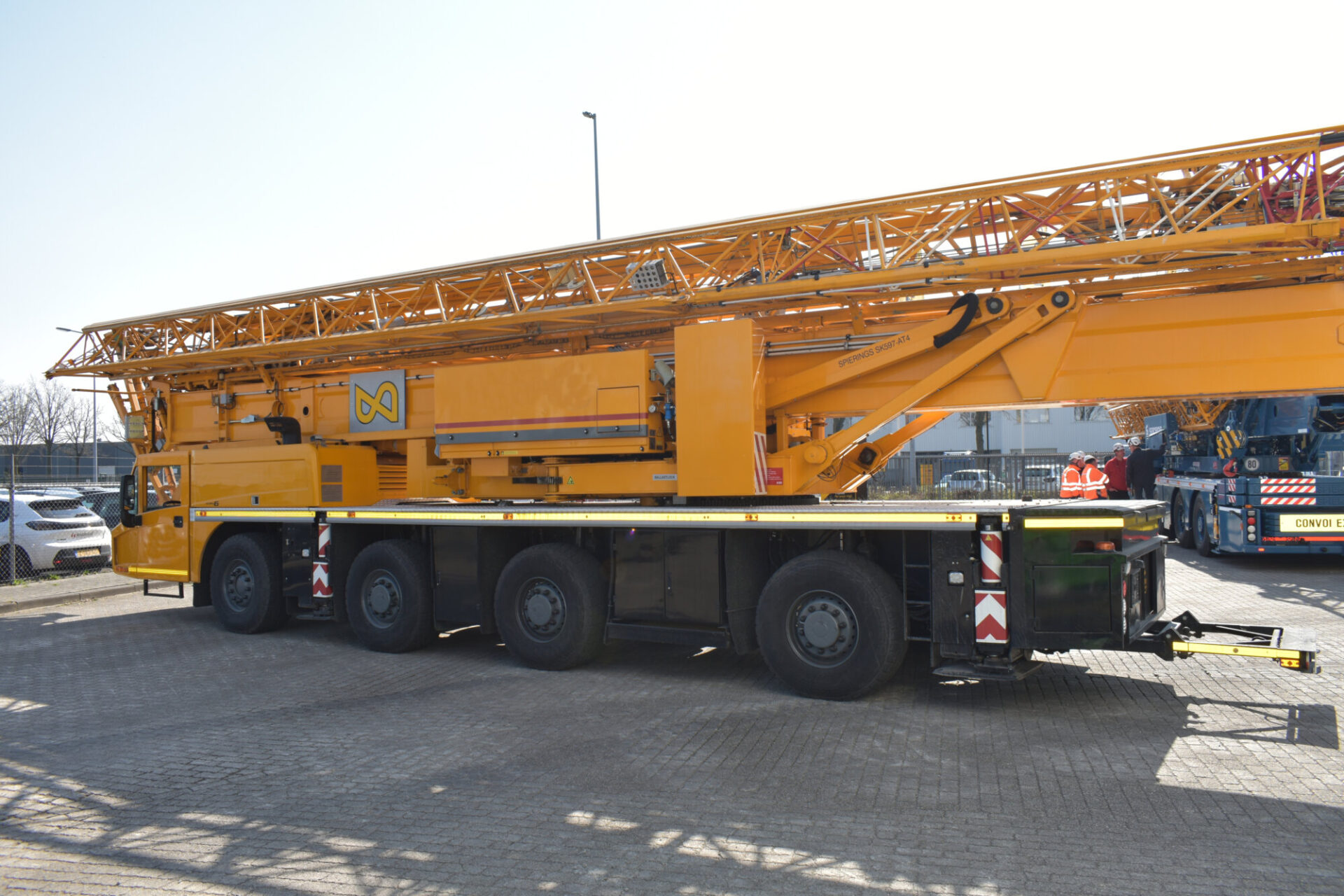

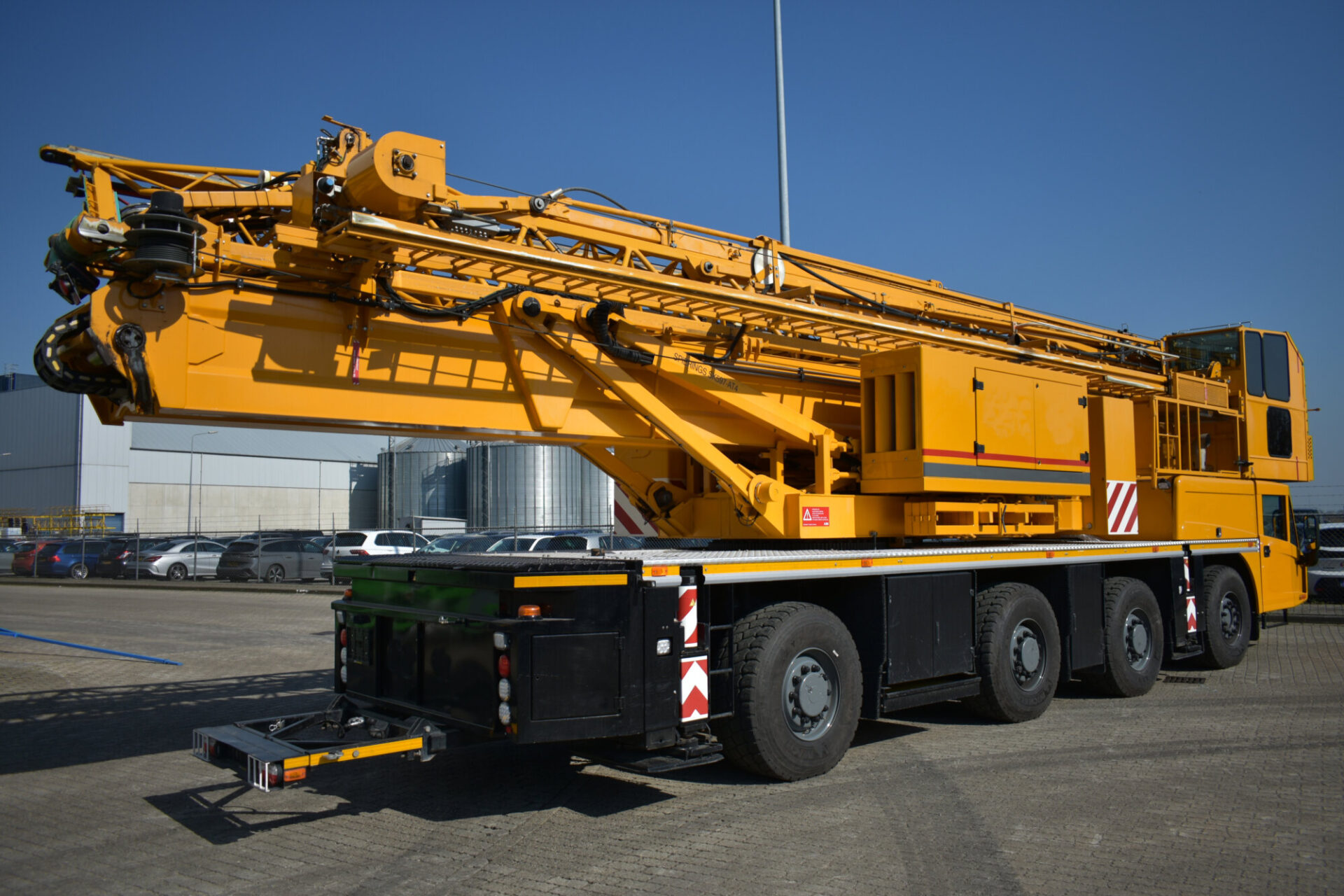

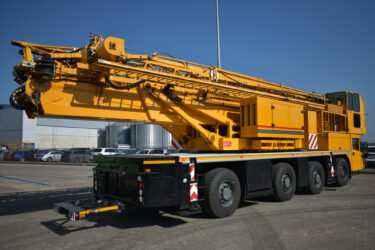

About this crane
With a flight of 48 metres and a maximum lifting height of over 58 metres, this crane is perfect for urban projects, industry and residential construction. It effortlessly lifts 7,000 kg without additional counterweight and is operational in no time.
Options on crane

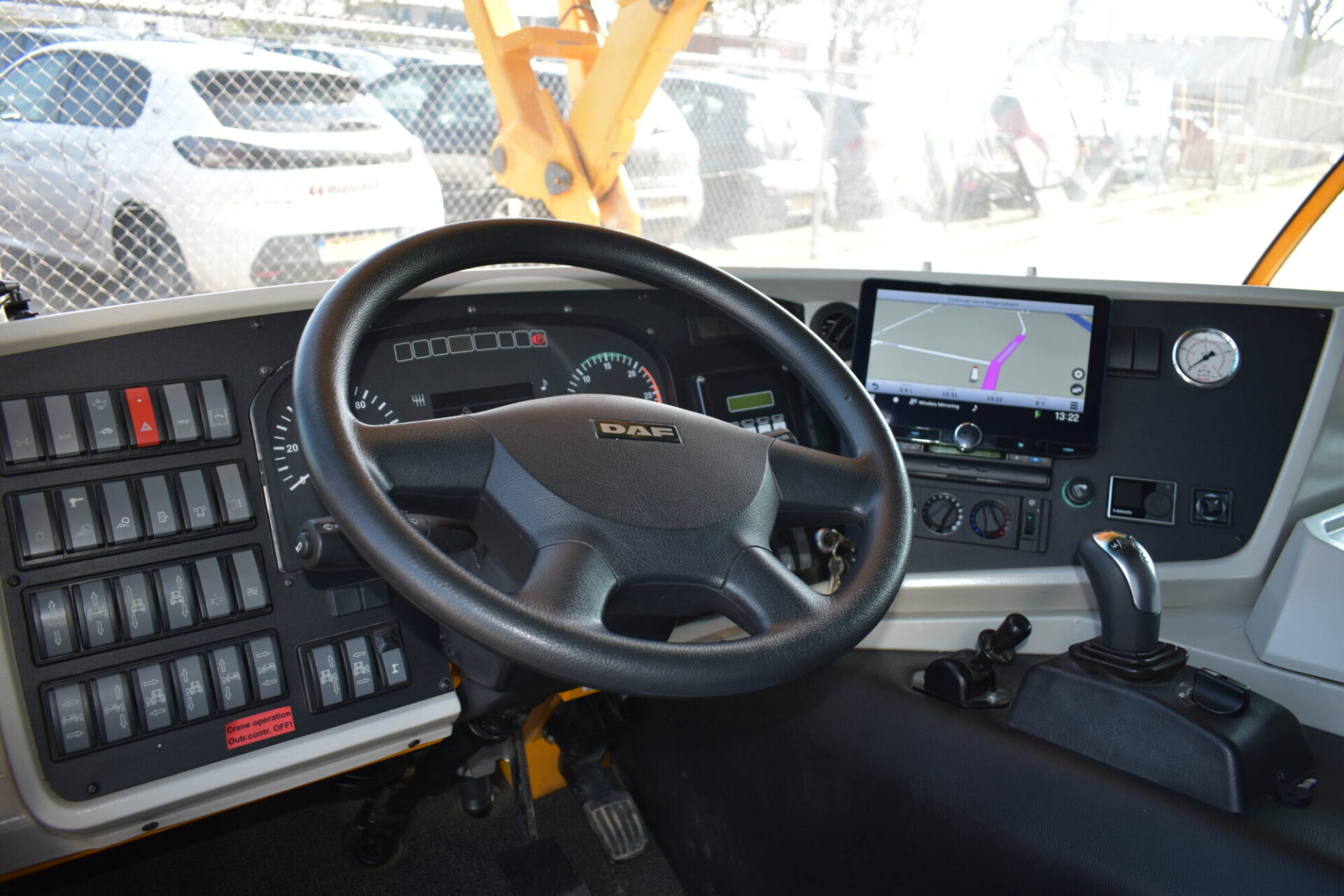

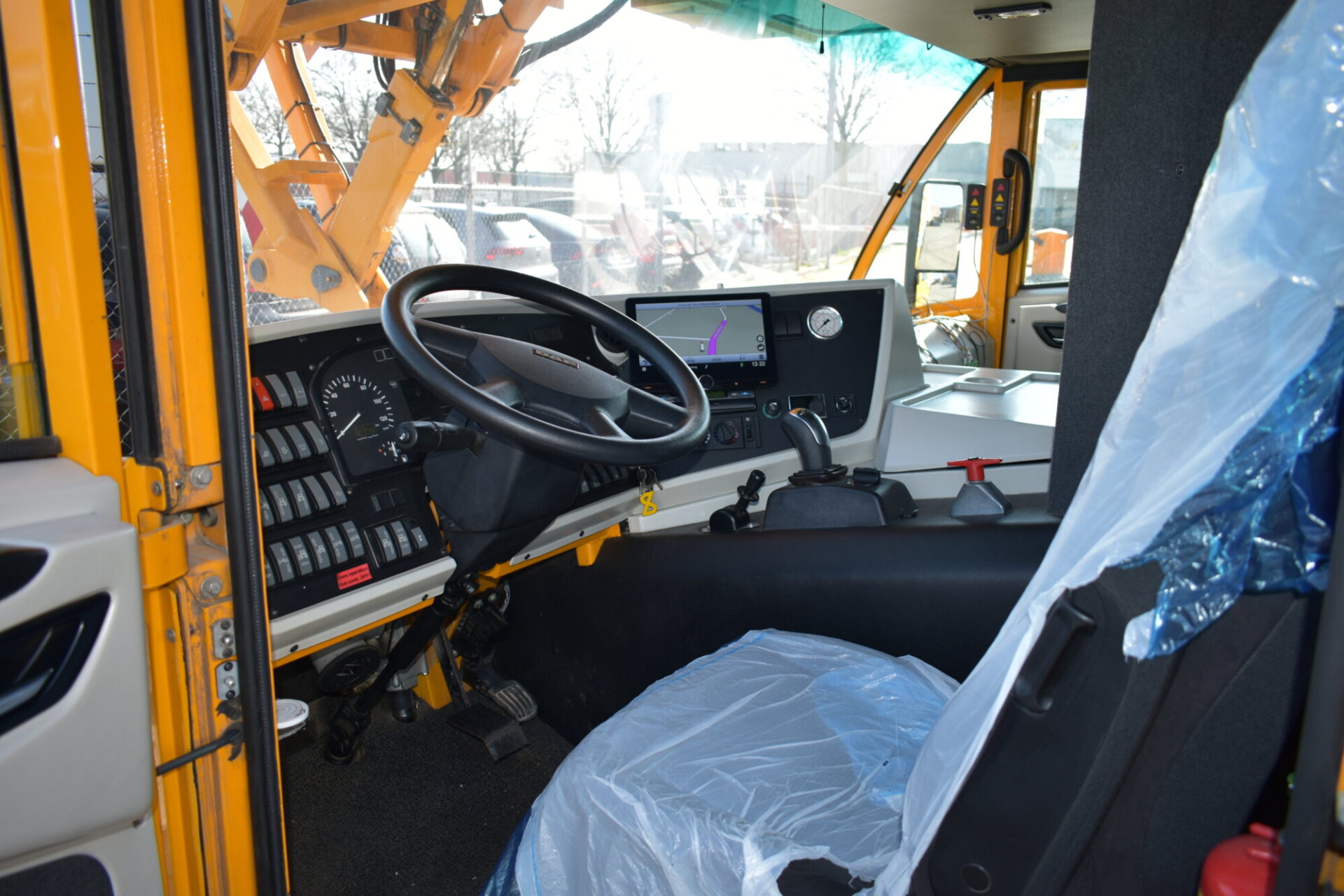

- Airconditioning truck cabin
- Airconditioning crane cabin
- Foldable Beam
- Trolley camera (BCS)

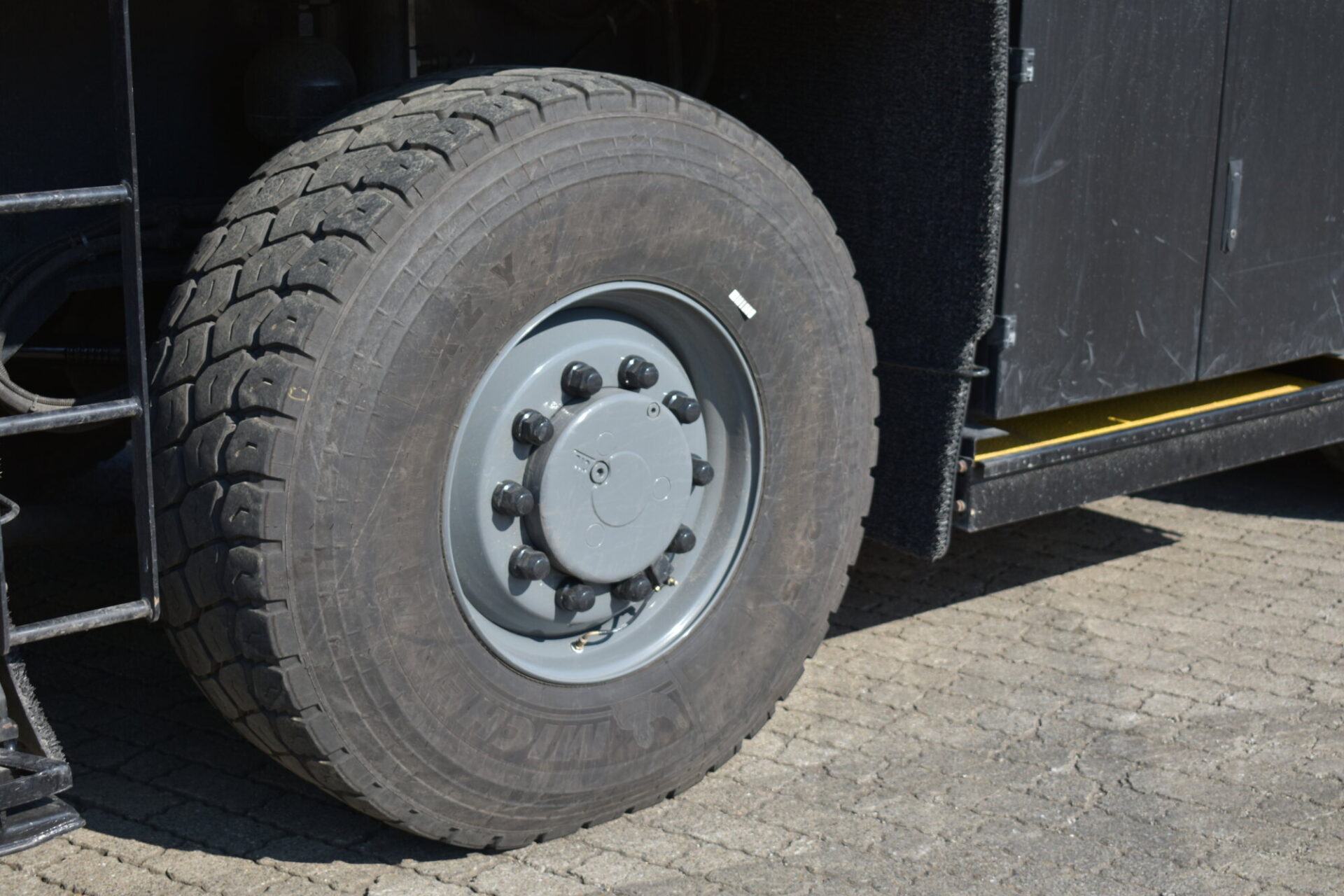

- Michelin Tires
